Flashforge Explorer

ตกรุ่น/เปลี่ยนเป็น Flashforge Hunter

เครื่องพิมพ์ระบบเรซิ่น DLP Resin Printer เพื่องานพิมพ์ละเอียดสูง

ข้อมูลสินค้า
1. เป็นระบบ DLP คือใช้ Projector ในการฉายแสง ไม่ใช่ Laser
2. สามารถใช้ได้ทั้ง Resin / Castable Rasin
3. ตัวเครื่องมีระบบเลื่อนฐาน เหมือน B9 Creator
4. พิมพ์โดยโปรแกรม FlashPrint

SKU: FFE Categories: , Tags: ,

Product Description

เครดิต Video จาก Flashforge Japan

INTRODUCING DLP STEREOLITHOGRAPHY TECHNOLOGY.

Incredible Detail. High Accuracy.

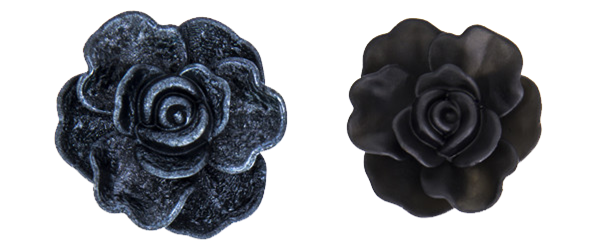

explorer_resin

Layer by layer, Flashforge DLP Explorer can print objects with an XY resolution of 50 microns and a Z resolution of 25 microns, making smallest resolution possible to avoid unsightly layer
stepping as seen in FDM printers.

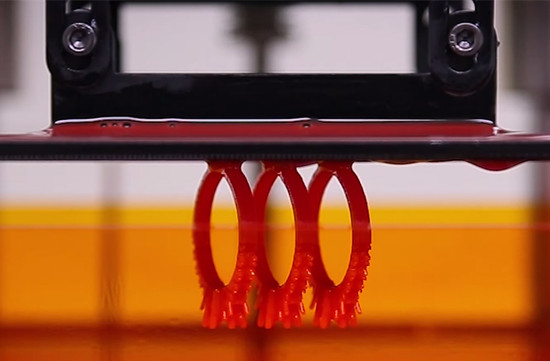

explorer_04

high quality dlp resin

Flashforge DLP Explorer 3D printer can guarantee each voxel (pixel projected) at the right location

when curing resin via its projector, leading to higher accuracy in dimension, equivalent to high-end

stereolithography 3D printers.

The projector cures a complete layer at a single time, much faster than FDM/SLA 3D printers.

EASY SET-UP. ONE-TOUCH OPERATION.

A printer that just works. No calibration is needed before you just hit the button to build fine detailed objects. Get set-up in as little as several minutes.

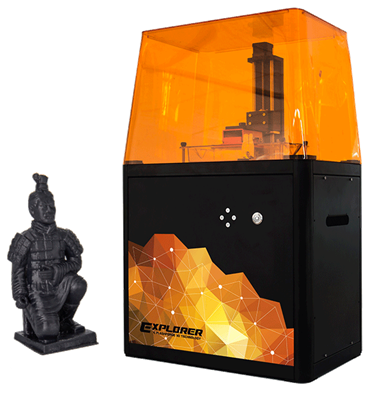

Explorer_resin_03

QUALITY MATERIALS.

High-performance resins are optimized for Flashforge Explorer 3D printer for reliable printing with exquisite detail.
high quality dlp 3d printer
POWERFUL FOR MULTIPLE APPLICATIONS.
SAVE TIME & MONEY.

Flashforge Explorer DLP 3D printer offers many advantages over consumer FDM/SLA 3D printers, working well for a wide variety of applications, such as Jewelry, Rapid Prototyping and Design.

Small build volume is featured for Jewelers to save material. Explorer supports castable resins which can be used directly in the traditional lost-wax casting process.

The Explorer is giving researchers and designers the speed, detail, and capability to turn concepts and ideas to reality as creatively as they design.

Printing Technology
DLP Stereolithography

XY Resolution
50 Microns / 100Micron

Layer Thickness
50 Microns

Build Envelope
High Res 51.2*38.4*150mm

Support Material
FE1200 (Castable Resin)
FE1100 (Standard Resin)

Software
FlashDLPrint

File Type
STL

AC Input
220V, 50Hz, 300W

Display Port
DVI

Connectivity
USB Cable

Product Weight
24 KG [52.9 LBS]

Product Dimension
500 x 310 x780 mm
[19.7 x 12.2 x 30.7 in]

Shipping Dimension
605 x 415 x 385 mm
[23.8 x 16.3 x 15.2 in]
