สเปค PC ขั้นพื้นฐาน
Standard-PC (32/64 bit – Windows Vista, 7, 8, 10)
3D graphics adapter
Available VGA or HDMI port
Two available USB ports
สเปค PC ที่แนะนำ
Dual core 2 GHz CPU
64 bit Windows
8 GB system memory
3d graphics card (e.g. NVIDIA GeForce or ATI Radeon) with 1 GB RAM or more
USB 3.0
Specification
Scan size: 60-500 mm
Resolution/Precision: Up to 0,05% of scan size (up to 0,05 mm)
Scanning time: One single scan within 2 seconds (or up to ~10 seconds, depending on settings and computer speed)
Mesh density: Up to 2,300,000 vertices per scan
Export formats: OBJ, STL, PLY Requirement required
Standard-PC (32/64 bit – Windows Vista, 7, 8, 10)
3D graphics adapter
Available VGA or HDMI port
Two available USB ports
Recommended
Dual core 2 GHz CPU
64 bit Windows
8 GB system memory
3d graphics card (e.g. NVIDIA GeForce or ATI Radeon) with 1 GB RAM or more
USB 3.0

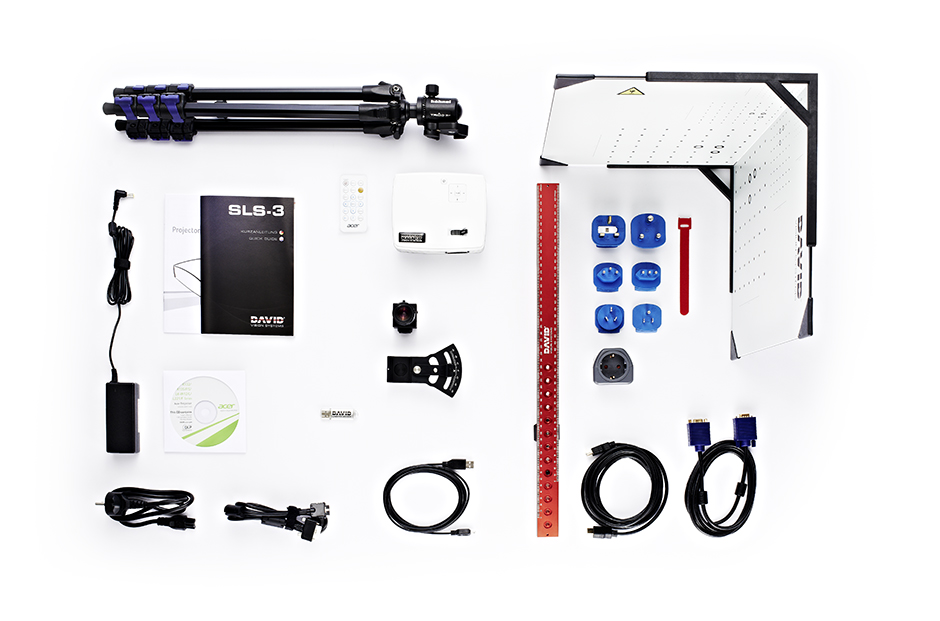

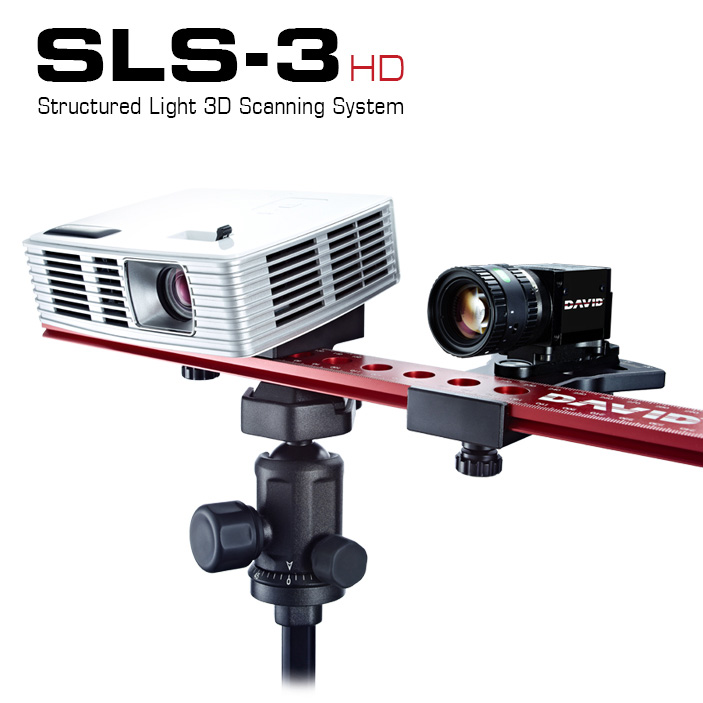

Contents

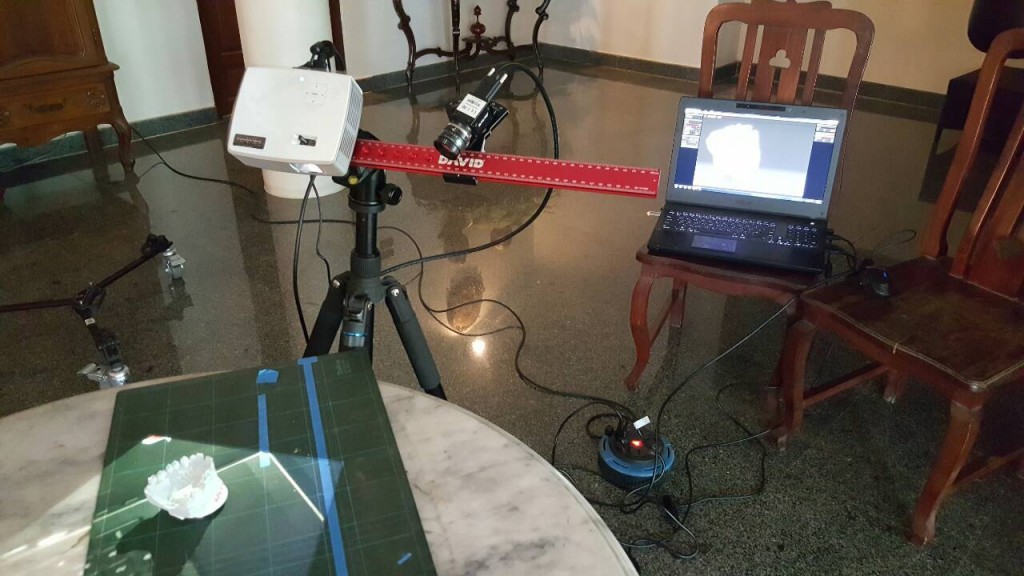

Industrial HDMI camera with high quality lens
Video projector with special lens for large focal range, including remote control
USB drive with DAVID PRO software
Sliding rail (aluminium)
Camera slider
High quality tripod
Calibration panels printed on both sides for multiple scan volumes
Printed instructions
All required connecting cables
Adapters for power supply in over 150 countries
Cable straps
