Geomagic Essentials (GE)

120,000.00 ฿

**ปัจจุบันไม่ขายแยกต้องซื้อพร้อมกันเป็นชุดกับเครื่องสแกน 3มิติ EinScan Reverse Engineering Design Bundle**
The power of Geomagic Scan-to-Design solutions is now more accessible than ever to designers needing to incorporate 3D scan data and part design.

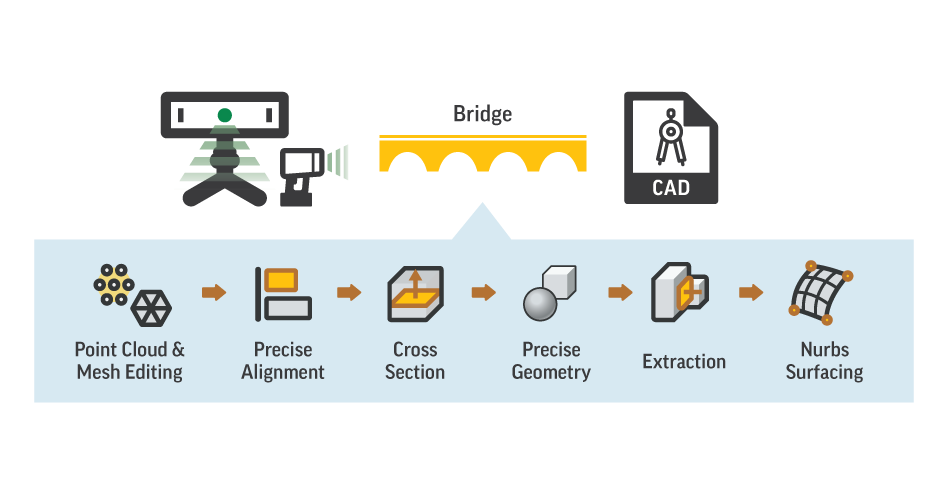

The Essential Bridge Between 3D Scanning and Design

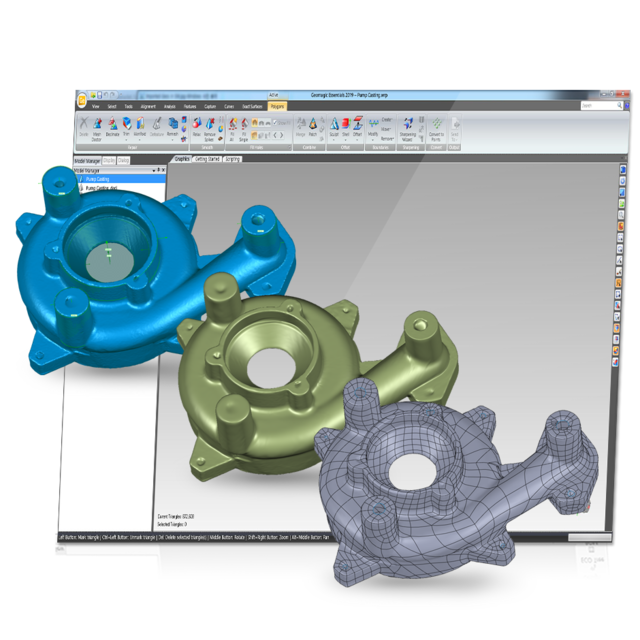

Geomagic® Essentials™ is the simple lightweight solution to move the 3D scanning world to the familiar CAD environment. Take any scan model, extract the feature you want, and create solid models and complex profiles to bring into your design environment.

Software จัดการไฟล์สแกนทั้ง Point Cloud หรือ Surface มาเป็นไฟล์ CAD เพื่อประโยชน์ด้าน Reverse Engineer และ Machining อื่นๆ ทำงานได้รวดเร็วออกแบบมาให้ใช้งานกับ 3D Scanner โดยเฉพาะ

Description

Scan It

Capture real-world data with EinScan Pro 2X Scanner

  • Make 3D scan data useful in the design environment
  • Increase over-all value of EinScan Pro 2X Handheld 3D scanner and industry standard software

Process It

Make surfaces from captured data

  • Simple tools to extract and generate shapes
  • Easily edit scan shapes directly without going to CAD

Model It

Transfer 3D model to CAD

  • Accurately build 3D models
  • Refine the model for direct .stl ready processes


Scan Processing

Geomagic Essentials Point cloud and Mesh editing

Point Cloud & Mesh Editing

  • Directly edit and manipulate Scan data
  • High quality hole filling for water tight mesh models
  • Manage file size through decimation for faster processing
  • Refine the model for direct .stl ready processes

Geomagic Essentials Precise Alignment

Precise Alignment

  • Manage multiple scan sessions to easily complete complex projects
  • Easily translate the scan to logical CAD orientation
  • Edit scan shapes directly with other scans without going to CAD; Making Negatives, Removing Fixtures

Feature Extraction and Modeling

Geomagic Essentials Cross SectionGeomagic Essentials Precise GeometryGeomagic Essentials Extraction

Cross Section / Precise Geometry / Extraction

  • Extract CAD perfect Shapes from the Scan data
  • Compare design features to reference Scan data for accuracy analysis
  • Control extents and constraints on modeling features
  • Easily create curve or line-arc cross section for direct CAD usability

Geomagic Essentials Nurbs surfacing

Nurbs Surfacing

  • Draw and trace complex features to generate curves for reference and modeling aids
  • Convert to a solid format to interact with as-is geometry
  • Import all geometry into the Native CAD package for a familiar modeling environment
